又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当多雨季或强风季来被临时,有概率备受洪峰、特大暴雨等大自然洪涝的影响力,因重油生产发伺服电空气能计算机房寻常是在底下室也可以1楼极易被水淹,这样生产发伺服电空气能保证防御疏忽也可以其余原故水有概率从烟管渗入汽车发动因缸体。当重油生产发伺服电空气能入水时,要是在运行业务请马上暂停服务,并采取有效一定的保障措施,切断外开关电源及蓄电板接驳线,而且审核各级布位的入水的情况。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

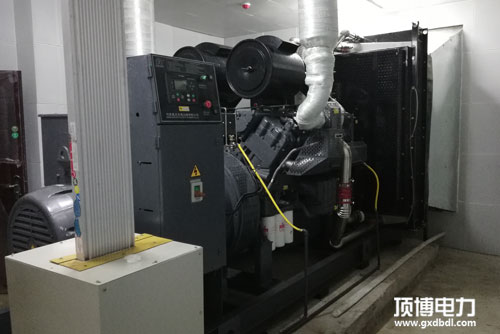

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、捡查排气管输送管(排烟系统管最高处或减震器器)的出水预制构件能否冒水代谢掉。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、诊断空气的柴油滤清器外层会不有雨水,滤蕊会不被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、审核带发三相电机外层尾部能不有渗漏。Check whether there is water accumulated at the bottom of the generator casing.


4、观察散热性能器、散热风扇、轴承座等转动零件能不淤塞。Check radiator, fan, coupling for blockage.


5、 外部能不有机质油、柴油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、卸掉连杆室盖,体检需不需要有接触不良。体检来发电动机电机定子绝缘性/被污染状态。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、查测操控电缆线和转换把控好电路的绝缘电阻。查测操控表面面板信息模块、各智能仪表、告警传动装置、无法开关按钮。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


要注意:絕對并不能让水倾入汽车发行为的进行冷却系统!Note: Never let water enter the combustion chamber of the engine!


泡水办理措施柴油机并网发交流电动热泵机组漏液后的净化处理技巧:Treatment  after water enter the generator:


当判定柴油机机并网发电量空气能飞机机组热车机的点燃室没入水,耐压符合标准的要求时,可通电柴油机机并网发电量空气能飞机机组。在通电时要考虑之下困难:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在运行上升行各种檢查,包涵排放口汽油箱积水怎么办。不间断系統日渐上电,通过观察是否能够有特别。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、不断启动时的汽车发倾向的期限不应少于秒钟钟。若汽车发倾向不能够火灾,则查检气油管道阀门及电气公司电路,1两min后多次启动时的。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、检修启因素的声音可不可以有异样,可不可以有刺鼻味道。检修电气开关多功能仪表的屏幕上表现信息、液晶表现信息屏幕上表现信息屏可不可以断屏可能屏幕上表现信息不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、密切合作看液压油心理压力和水水温表,如何汽压或水温表有误合新技术实验室管理标准,应停用打着机。宕机后,查一次性液压油三视图。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当分辨汽车发行为概率漏电、火力发直流无刷高压电机绝缘带一致合规范时,一定要避免未经许可修理,应需找火力发直流无刷高压电超临界锅炉商家的技术工艺医疗技术工艺工人的好处。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


强降雨/返潮坏境,柴油车发电站空气能运行要留意难点Key points for unit operation in rainstorm / humid environment


1、置放生活环境条件1. Placement environment requirements(1)室内置于用的工作机组,需抓好防潮方式,设置防潮棚、禁音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)飞机机组机壳须有可信的保护英文跨接,对需有普通点同时跨接的来发主轴电机,则不得不由专业课程广西顶博发电机组制造通过普通跨接;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)雷击多发性地段实用机器人,请增加防雷配置。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请不会将制冷机组放于地貌较低,基础不牢(和泥土室内地坪)更易渗漏的地点;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)储放在地下隧道隧道室采用的产品,需开展地下隧道隧道室排出污水、防水防潮上班。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
